See Features Below:
- No one in the industry has more sophisticated and comprehensive research and quality control program than MaxJax, and our thousands of customers worldwide prove it.
- Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
- Hydraulic cylinders feature integrated velocity-fuse safety valves.
- A cast iron gear flow divider provides precisely equalized lifting for the uniform division of hydraulic power.
- Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
- Arm restraints automatically engage each time the lift is raised.
It’s the features you get that set the MaxJax apart from the rest. Every MaxJax unit is loaded with the right features that make it the best choice when looking for a new car lift. Read through the long list of features this car lift has to offer and you’ll easily come to the conclusion that the MaxJax is no ordinary garage lift.

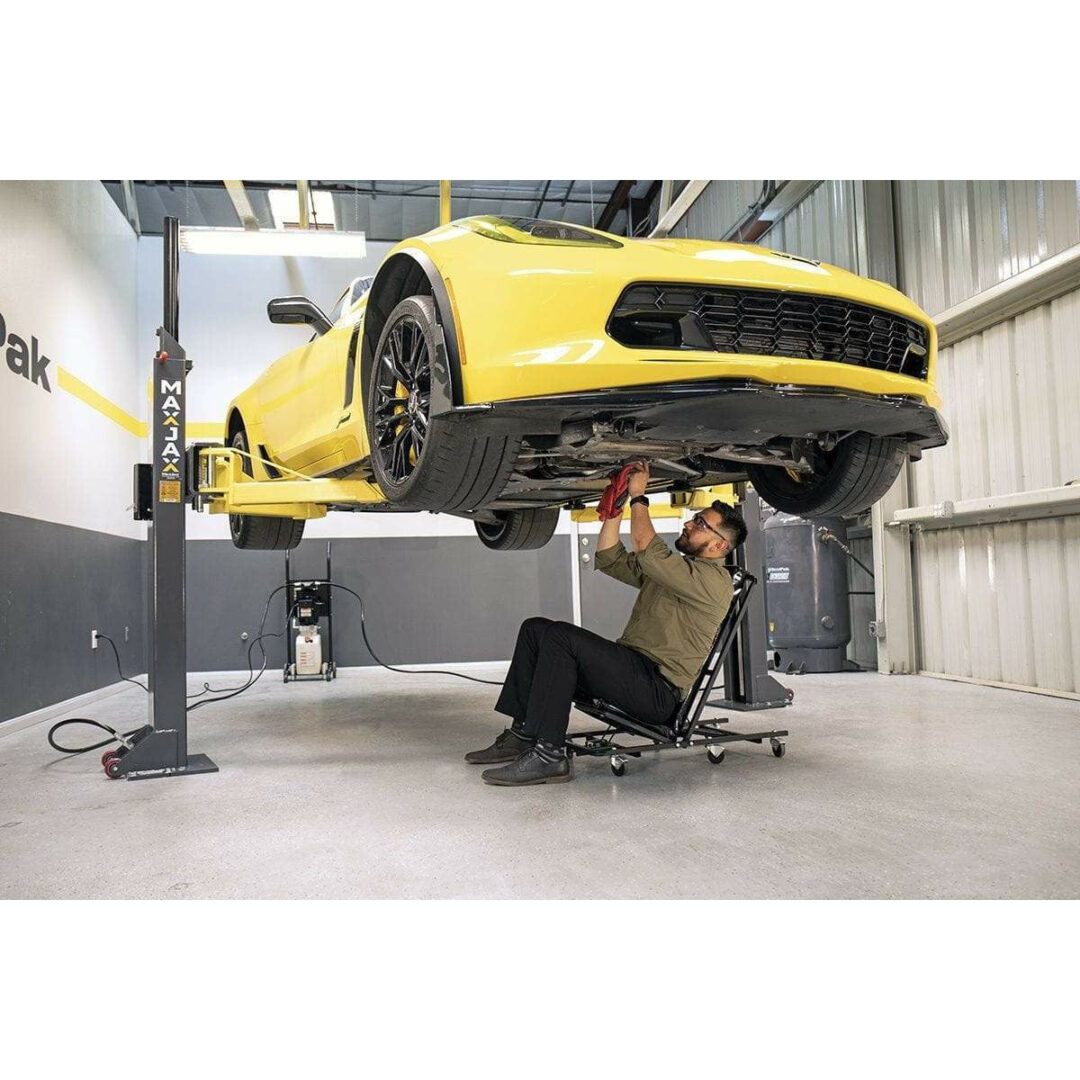

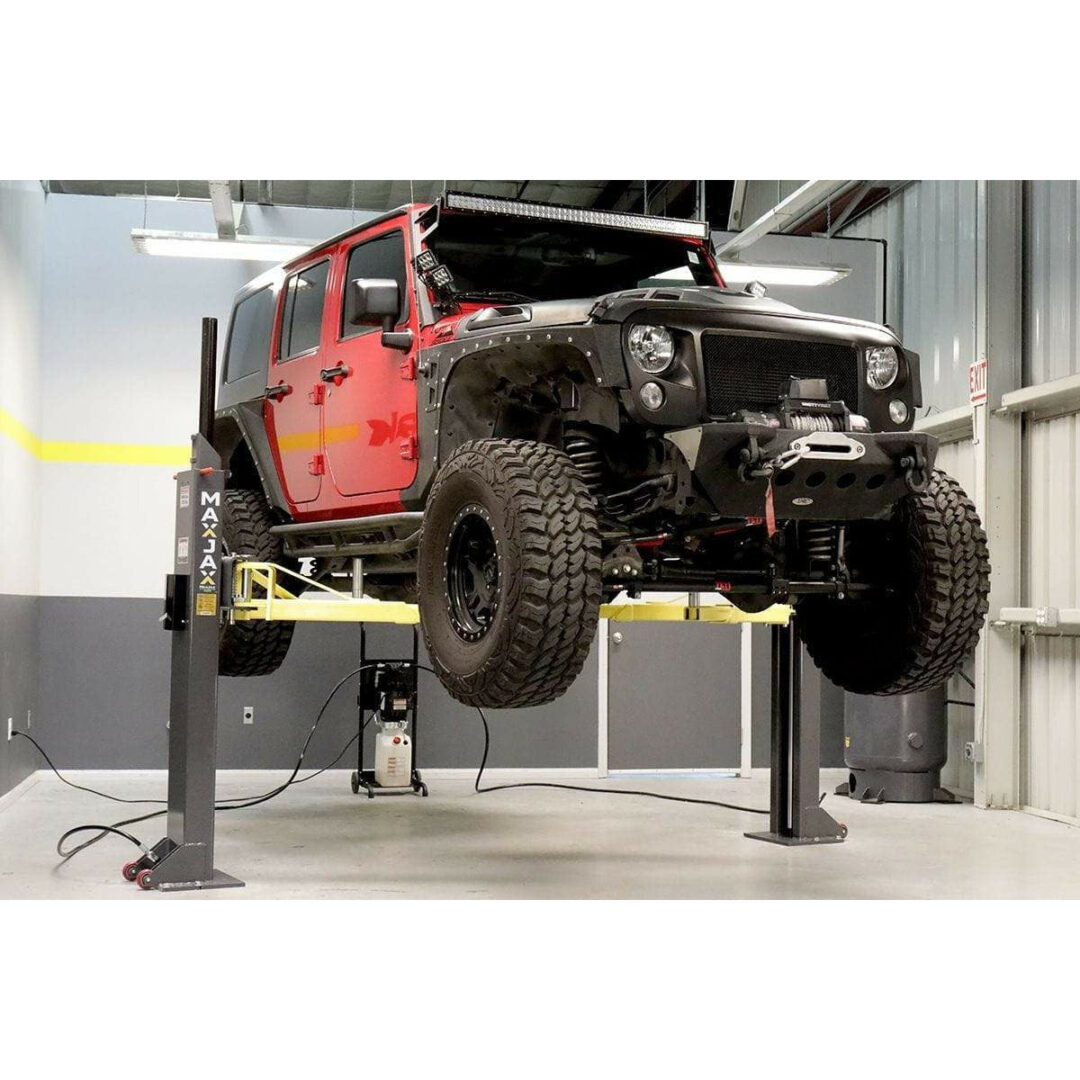

Clear undercar access
No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides, transmissions, drive-shafts, starters, differentials or anything else requiring under-car access.
Portability A two-post car lift with built-in wheels that allows you to use the lift when you need it, then conveniently store it out of the way when not in use keeping your garage and vehicle lanes clutter-free.
Stow to go in less than 15-minutes
Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling.
Works like magic
A cast iron gear flow divider is the heart of the MaxJax® system, providing precisely equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device with precise flow division of hydraulic power from one column to the other even if load balance pressures change.
Mobile power unit cart
Our standard mobile power unit cart is small enough to be stored out of the way and features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-volts AC and a 23 amp breaker. The industrial grade power cord is 6-Ft. long. A simple push-button switch raises the lift and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation.

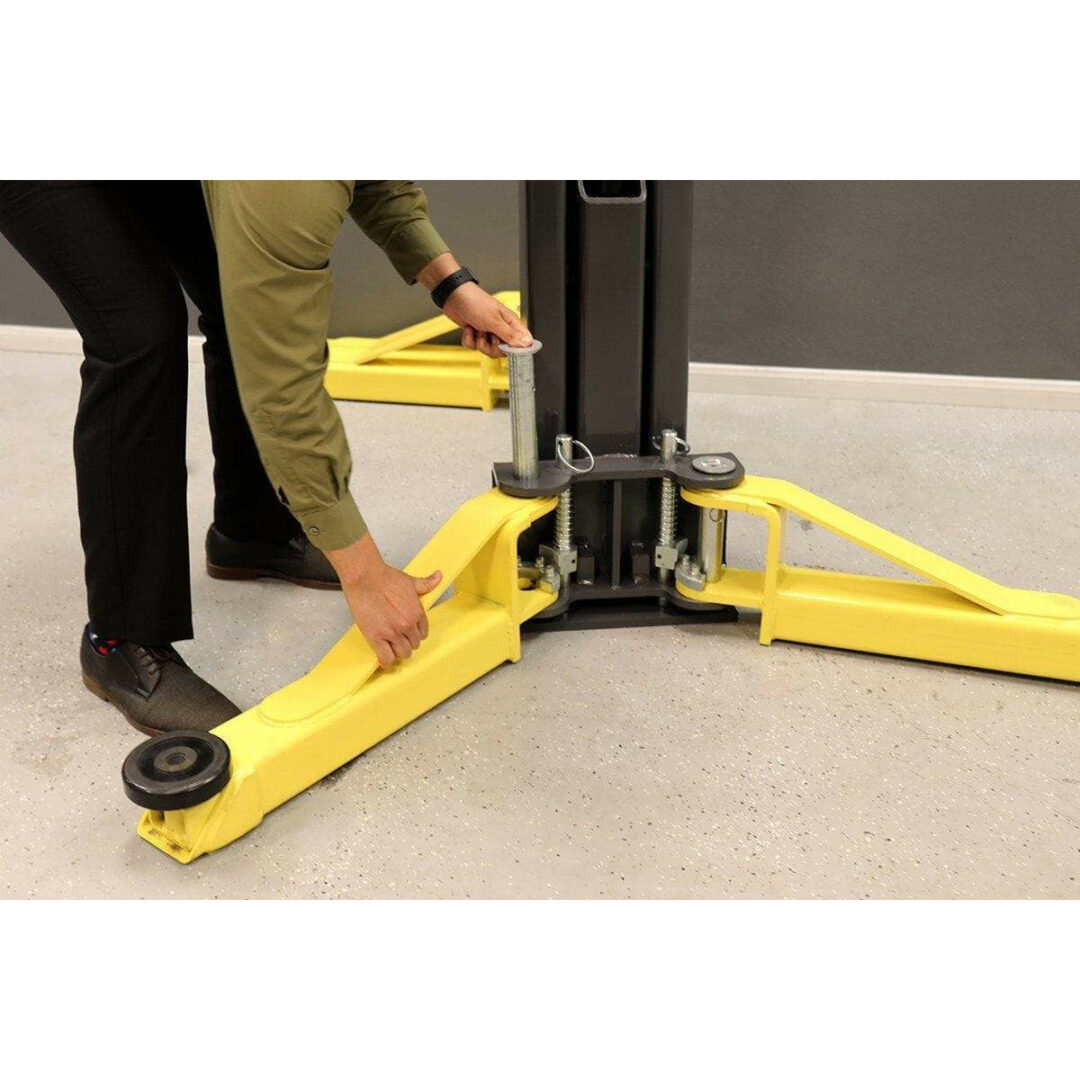

Adjustable lifting arms and stackable adapters
Increases overall arm positioning for lifting a variety of different vehicles that have Uni-body construction, OEM recommended pick-up points, or wide and/or narrow frame configurations. Every MaxJax order includes four (4) medium height adapters and four (4) stackable standard lift pad adapters.
Low-profile arms
Fit under the lowest compact and sport vehicles or custom motorcycles with lowered frames.
Specifications
| Lifting Capacity | 6,000 lbs. (2,722 kg) |
|---|---|
| Max Load Per Arm | 1,500 lbs. (680 kg) |
| A Height Overall | 89.5″ (2,273 mm) |
| B Height of Column | 64″ (1,626 mm) |
| C Min. Pad Height | 4.5″ (114 mm) |
| D Max Lift Height (Pad Only) | 47.5″ (1,207 mm) |
| E Max Lift Height (With 3″ Adapter) | 50.5″ (1,283 mm) |
| F Arm Reach (Min – Max) | 26″ – 40″ (660 mm – 1,016 mm) |
| G Typical Width (Outside of Base Plate) | 105″ – 135″ (2,667 mm – 3,429 mm) |
| H Drive-thru clearance | 74″ – 104″ (1,880 mm – 2,642 mm) |
| Locking Positions | 7 (every 3″) |
| Motor | 110 VAC / 50-60 Hz. / 1 Ph. (23A Breaker) |
| Time of full Rise | 45-seconds |
| Individual Column Weight | 300 lbs. (136 kg) |
| Shipping Weight (Standard Model) | 960 lbs. (435 kg) |
The design, material and specifications are subject to change without notice. The MaxJax is protected by one or more patents or claims of patents in the U.S. and elsewhere. PATENT NO. US 8.256.577 B2 – PATENT NO. US 9.150.395 B2.
Baseplate dimensions*
| A | 371 mm (14.5″) |
|---|---|
| B | 330 mm (13″) |
| C | 150 mm (6″) |
| D | 24 mm (1″) |
| E | 165.5 mm (6.5″) |
| F | 20 mm (0.75″) |
| G | 20 mm (0.75″) |
