Features & Specs
- 9,000-lb. maximum lifting capacity
- Freestanding design
- Perfect for parking, storage and service
- Double-wide configuration for quad-vehicle storage
- Four runways
- Super-tall rise
- Extra-long ramp
- Runways accommodate wide or narrow vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers

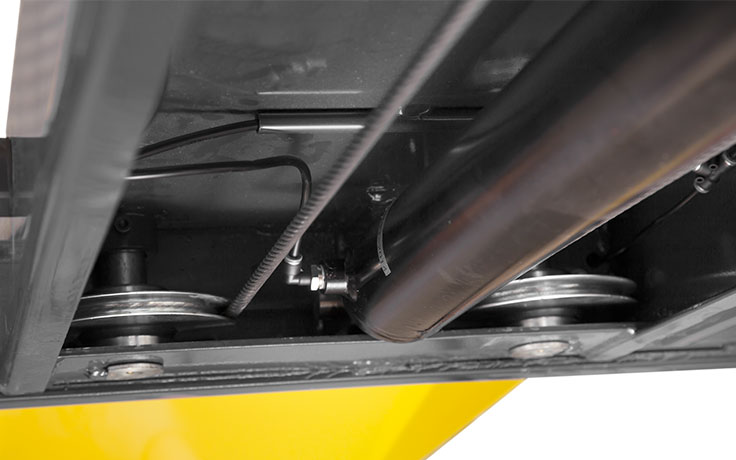

- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8″ aircraft cable
- Rugged 1.25″ roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Inside runways adjust for different tread widths
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available
Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A – Min. Runway Height:
7″ (178 mm)
B – Max. Rise:
82″ (2,083 mm)
C – Max. Lifting Height:
89″ (2,261 mm)
Time to Full Rise:
65 seconds
Outside Dimensions
D – Overall Width:
202″ (5,131 mm)
E – Outside Length:
198″ (5,029 mm)
F – Overall Length:
224″ (5,690 mm)
G – Height of Columns:
102″ (2,591 mm)
Inside Dimensions
H – Width Between Columns:
192″ (4,877 mm)
I – Drive-Thru Clearance:
178″ (4,521 mm)
Runways
J – Runway Width:
19″ (483 mm)
K – Length of Runways:
188″ (4,775 mm)
L – Width Between Runways:
37″ (940 mm) or 42″ (1,067 mm)
M – Runway Centerline:
56″ (1,422 mm) or 61″ (1,549 mm)
N – Outside Edge of Runways:
75″ (1,905 mm) or 80″ (2,032 mm)
Minimum Wheelbase
Rated Capacity:
135″ (3,429 mm)
75% Capacity:
115″ (2,921 mm)
50% Capacity:
95″ (2,413 mm)
25% Capacity:
80″ (2,032 mm)
Locking
Locking Positions:
16
Lock Spacing:
Every 4″ (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
2,966-lbs. (1345.4 kg)
Dimensions:
214” x 22” x 51” (5,435 mm x 558 mm x 1,282 mm)
