The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift
- 3-Stage front arms/2-Stage rear arms
- Automatic Arm Restraints

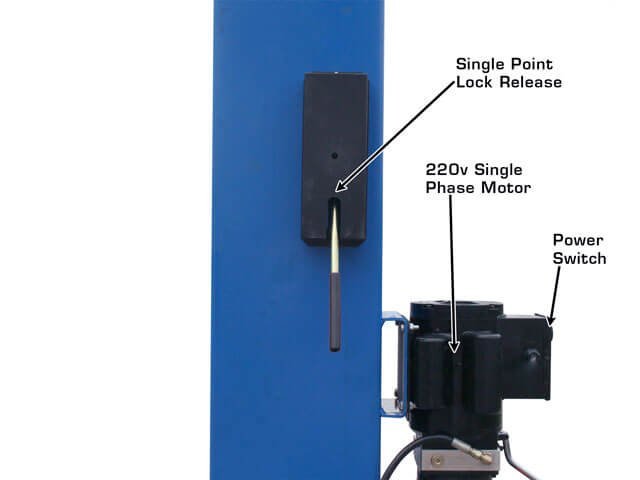

- Single-Point Lock Release
- Double Safety Lock System

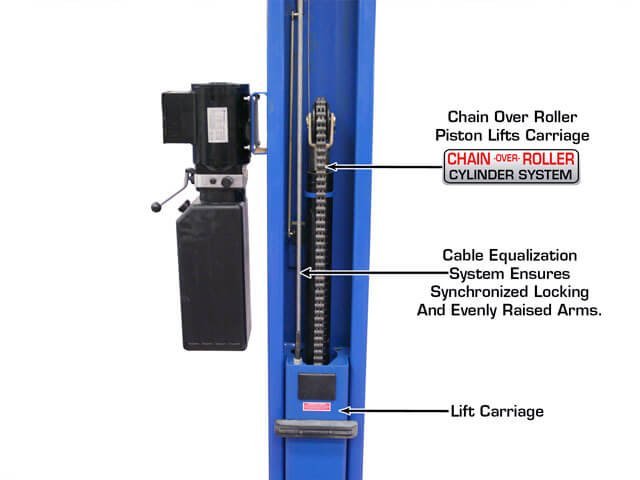

- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,300 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

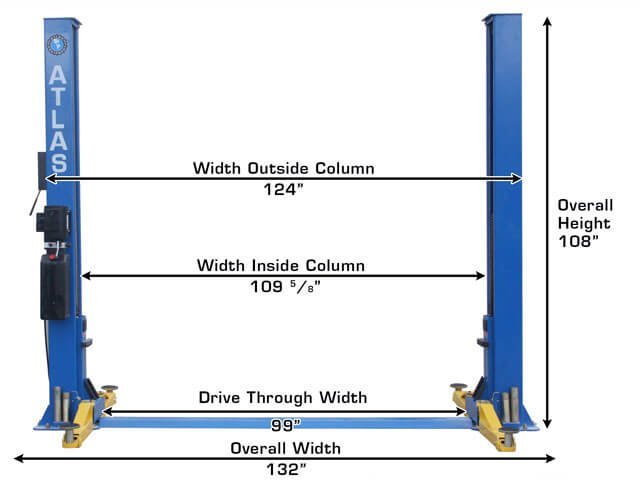

| Atlas® ATTD-BP8000 Specifications | ||||||
| Capacity | 8,000 LB. | |||||
| Overall Height | 108″ (9’) | |||||
| Overall Floor Width | 132″ (11’) | |||||

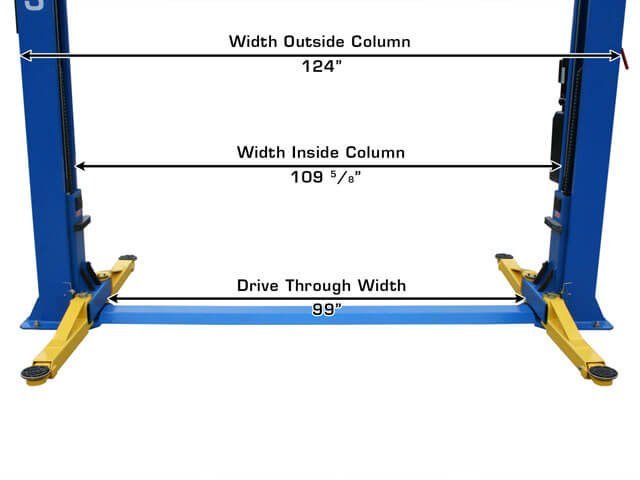

| Outside Column to Outside Column | 124″ (10’ 4″) | |||||
| Maximum Lift Height (Without Adapters) | 75 1/2″ | |||||
| Maximum Lift Height (With Adapters) | 86 1/2″ | |||||
| Minimum Arm Height | 4″ | |||||
| Inside Column | 109 1/8” (9’ 1 1/8”) | |||||
| Drive Thru | 99” (8’ 3”) | |||||
| Column Size | 7 1/4″ x 11″ | |||||
| Column Thickness of Steel | 6mm | |||||
| Base Of Lift | 17 1/2″ x 17 3/4″ | |||||

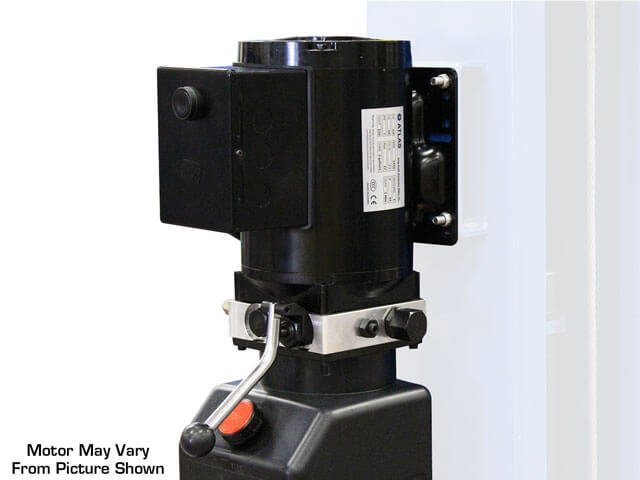

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|||||
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |||||
| Shipping Weight | 1,300 LBS. | |||||
| Adapter Heights | 4 Each 2”, 3”, 6” | |||||
| Arm Hole/Adapter Peg Size | 1.5” | |||||
Requires a minimum of 4″ of concrete with a 3000 psi. rating
|
||||||
