All 2-Post Car Lifts
36 Months Parts Warranty
6’9″ Lift Height Maximum with Truck Adapters
All Robot Welded Structure with Durable Powder Coated Finish
Double Seal Rings Protecting PU Material
The APlusLift HW-9KOH car lift (auto hoist) is one of the most affordable overhead car lifts with a 9,000 LB heavy-duty capacity. These lifts are built with quality materials and great craftsmanship. We ensure that we do not use recycled materials in critical parts like cylinder seal rings, providing long-lasting durability. We welcome suggestions to improve our products and services!
Free shipping to the lower 48 states with a forklift (or similar equipment) on-site or free pickup at nearby terminals. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift, as expenses for rentals will not be reimbursed. Additional charges may apply for limited access, remote, or high-cost delivery areas.
Warehouse Pickup Locations (Contact Us for a $200 Discount):
Portland (OR), Dallas (TX), Jacksonville (FL), and Mobile (AL).
Frequently Asked Product, Order, and Shipping Questions
Specifications and Features

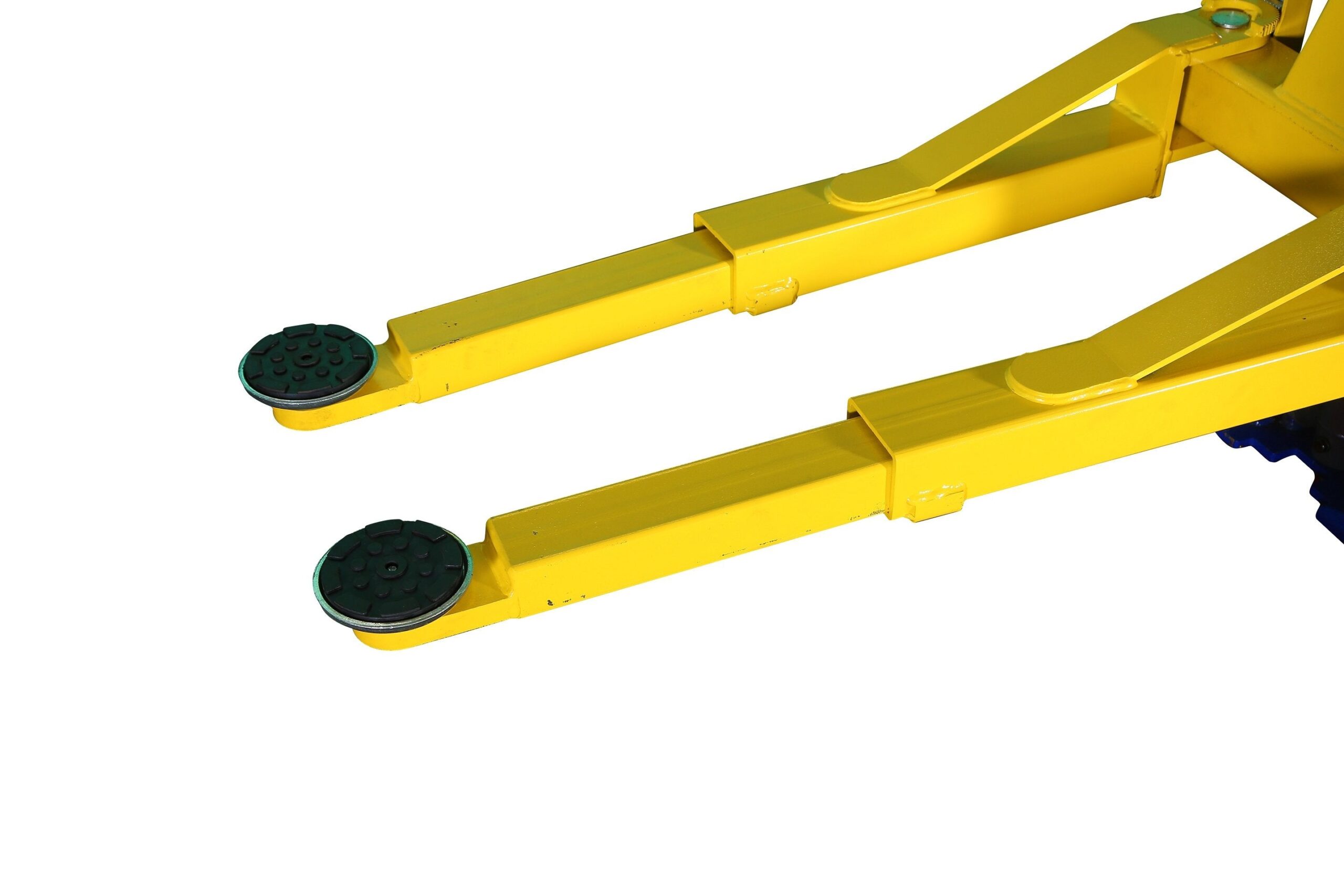

- Symmetrical Arm Assembly: Straight Front / Rear 2 Stage reach from 30 1/8″ to 45 3/8″
- Equal length of front and rear arm design
- Drop-in type lifting pads and truck adapters included
- Double point safety lock release
- Automatic arm lock restraints
- Relief valve built into the power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders within safe working stroke limits
- Heavy-duty 3/10″ diameter cable and 4 1/5″ pulley reduce high stress on synchronization, increasing cable life
- Stiffened base plate with 5/8″ thickness

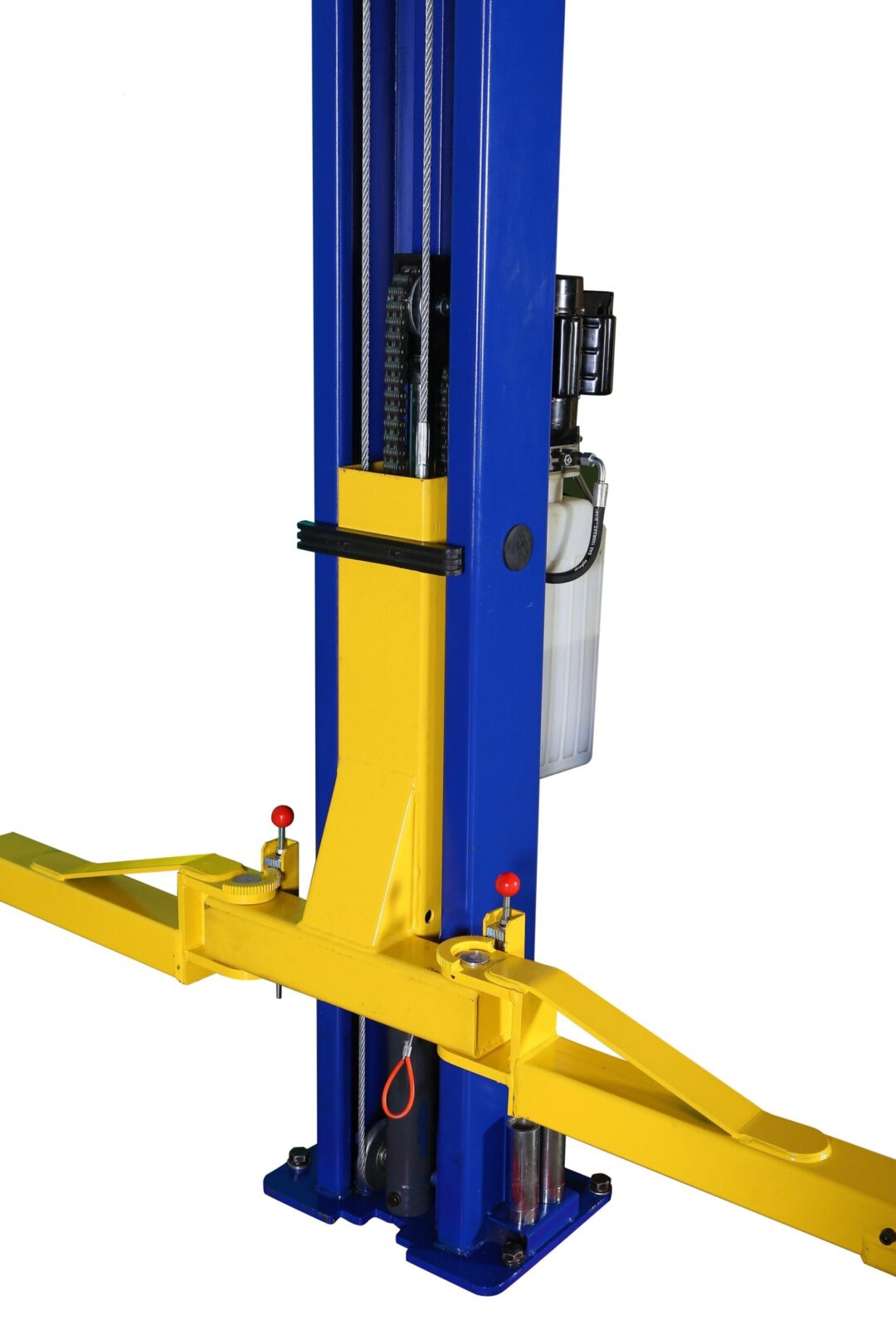

- Ultra-high molecular self-lubricating nylon slider ensuring smooth carriage movement up and down
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever

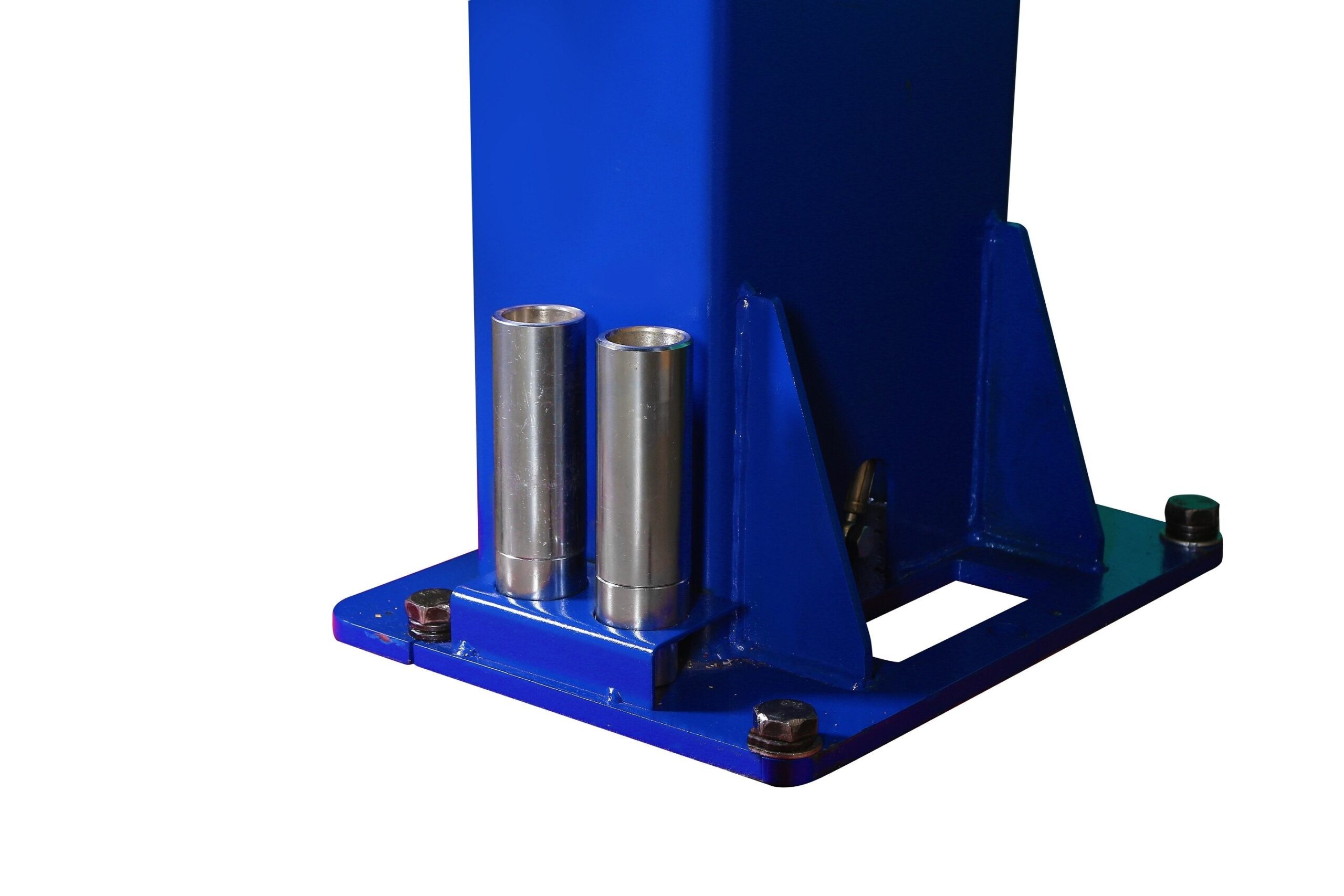

- 2 sets of truck adapters (height extensions) included
Specifications:
- Lifting Capacity: 9,000 LB
- Overall Height: 143 3/16″
- Overall Width: 134 5/16″
- Lifting Height without Truck Adapters: 75″
- Lifting Height with Truck Adapters: 81″
- Minimum Height of Arm Top: 4″
- Carriage to Carriage Width (Drive-through clearance): 100″
- Column to Column Width: 109″
- Column Cross Section: 11″L x 7″W
- Driving Mode: Dual hydraulic cylinders, chain drive
- Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
- Time to Full Rise: 50 seconds
- Concrete Requirement: 4″ at 3500psi reinforced with fiberglass or steel
- Anchor bolts/mounting hardware: Included
- Shipping Weight: 1,300 LB
- Shipping Package Size: 113″L x 40″H x 22″W
