APlusLift HW-9KFL 9,000LB 2-Post Floor Plate Car Lift

APlusLift HW-9KFL 2-Post Car Lift – 9,000 LB Heavy Duty

Key Features:

• 36 Months Parts Warranty
• 6’9″ Maximum Lift Height with Truck Adapters
• Durable Robot Welded Structure with Powder Coated Finish
• Double Seal Rings for Enhanced Protection
• Upgraded Beveled Diamond Plate Steel Floor Plate (5/32″) with Supporting Bracket

The APlusLift HW-9KFL is one of the most affordable and high-quality 2-post car lifts available, designed to lift up to 9,000 LB. This lift features superior materials and robust construction, ensuring durability and reliability. Unlike some competitors, we do not compromise by using recycled materials, especially in parts like cylinder seal rings. The HW-9KFL offers great value with a 36-month warranty on parts, a $499 value.

Specifications:

• Lifting Capacity: 9,000 LB
• Maximum Lift Height with Truck Adapters: 81″
• Maximum Lift Height without Truck Adapters: 75″
• Overall Height: 113 5/8″
• Overall Width: 134 3/16″
• Carriage to Carriage Width (Drive-through clearance): 100″
• Column to Column Width: 109″

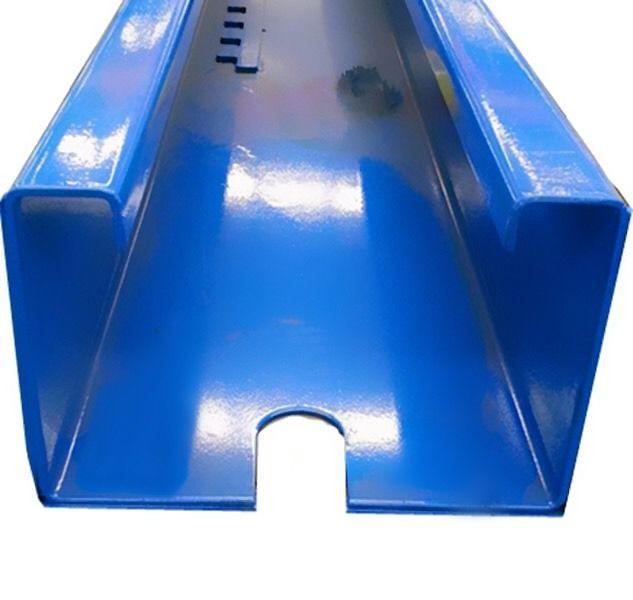

• Column Cross Section: 11″L x 7″W
• Floor Plate Size: 10 5/8″W x 1 7/8″H

Features:

• Dual Hydraulic Cylinders, Chain Drive

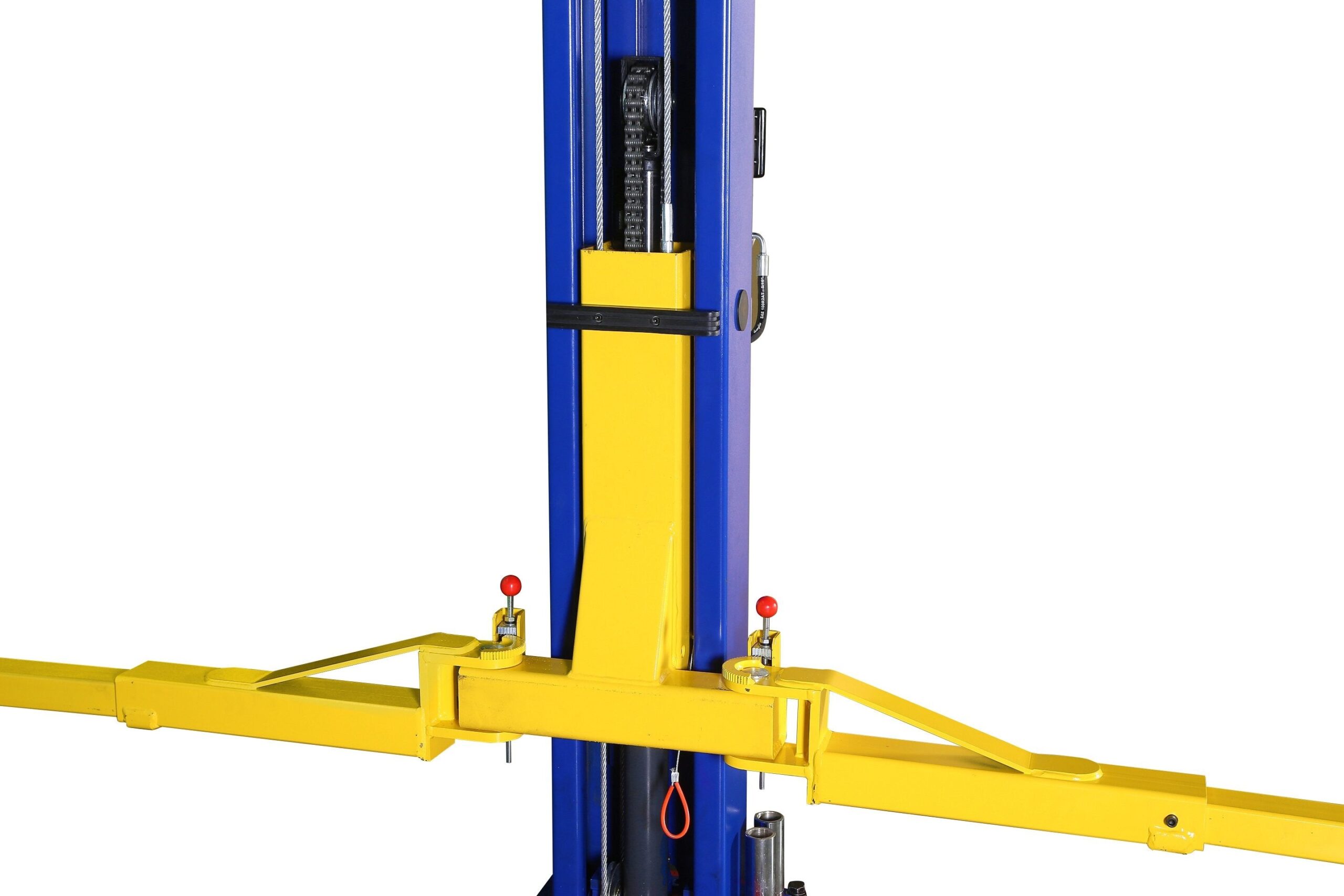

• Automatic Arm Lock Restraints
• Relief Valve Built into Power Pump to Prevent Overloading
• Upgraded Floor Plate with Beveled Diamond Plate Steel (5/32″)
• Ultra High Molecular Self-Lubricating Nylon Slider
• Heavy Duty 3/10″ Diameter Cable and 4 1/5″ Pulley for Increased Cable Life

Shipping & Delivery:

• Free shipping to the lower 48 states with forklift on-site or free pickup at nearby terminal.
• Warehouse Pickup Locations: Portland (OR), Dallas (TX), Jacksonville (FL), Mobile (AL), Mansfield (OH).
• Residential/Remote Delivery: Additional charges may apply. Please prepare your own unloading equipment (forklift, bobcat, etc.). Liftgate service not available.

Installation & Concrete Requirements:

• Concrete Requirement: 4″ thick at 3500 psi reinforced with fiberglass or steel.
• Includes anchor bolts and mounting hardware for installation.

Motor & Hydraulic Oil:

• Motor: 220V Single Phase 3HP (10A), recommended 30A breaker.
• Hydraulic Oil: 3-5 gallons AW32/AW46 (not included).

Additional Features:

• Stiffened Base Plate (5/8″ thickness)
• Manual Lowering Operation (by pressing the lever)

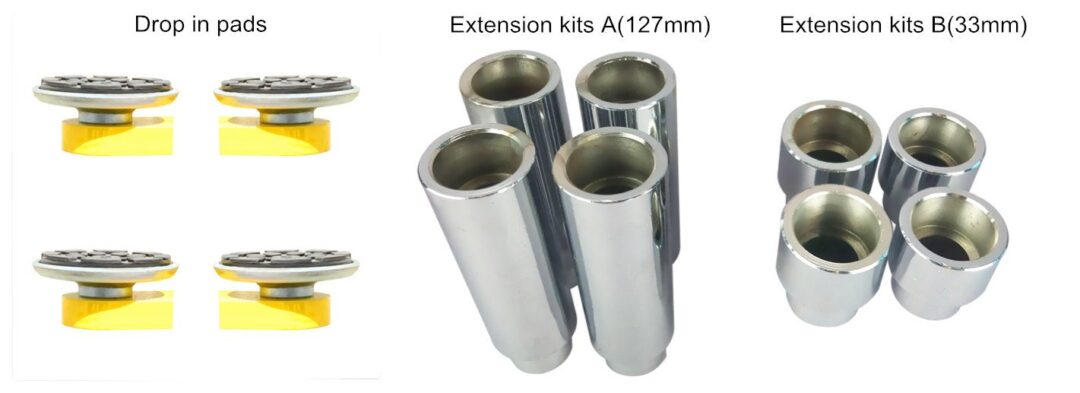

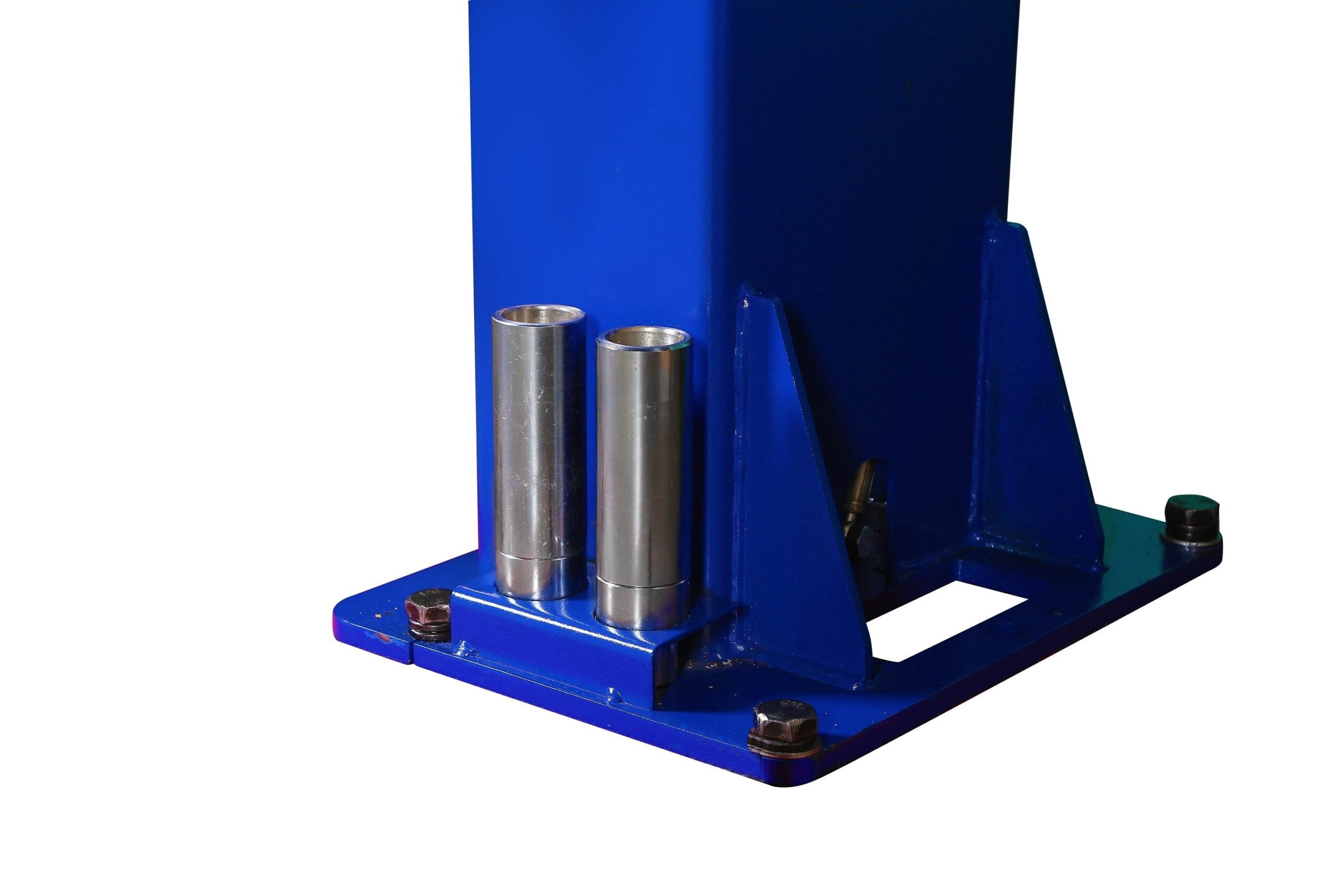

• Drop-in Type Lifting Pads and Truck Adapters Included
• Up-limit Switch to Protect Cylinder Stroke
