All 2-Post Car Lifts
Industry-Leading 3-Year Warranty (a $499 Value!)

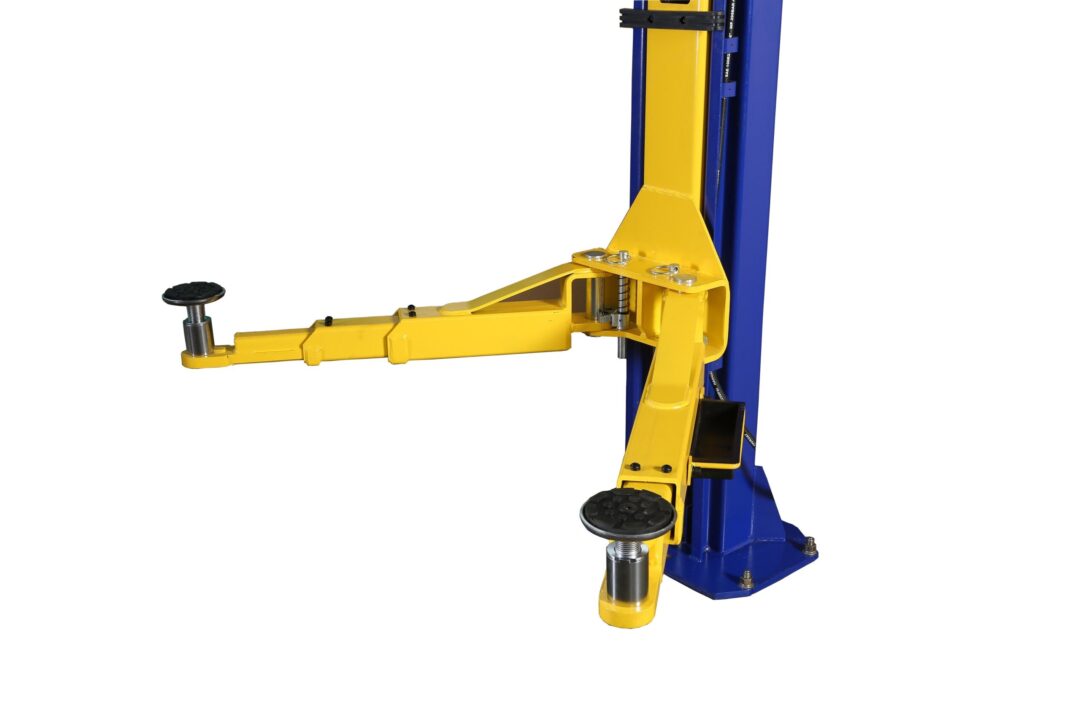

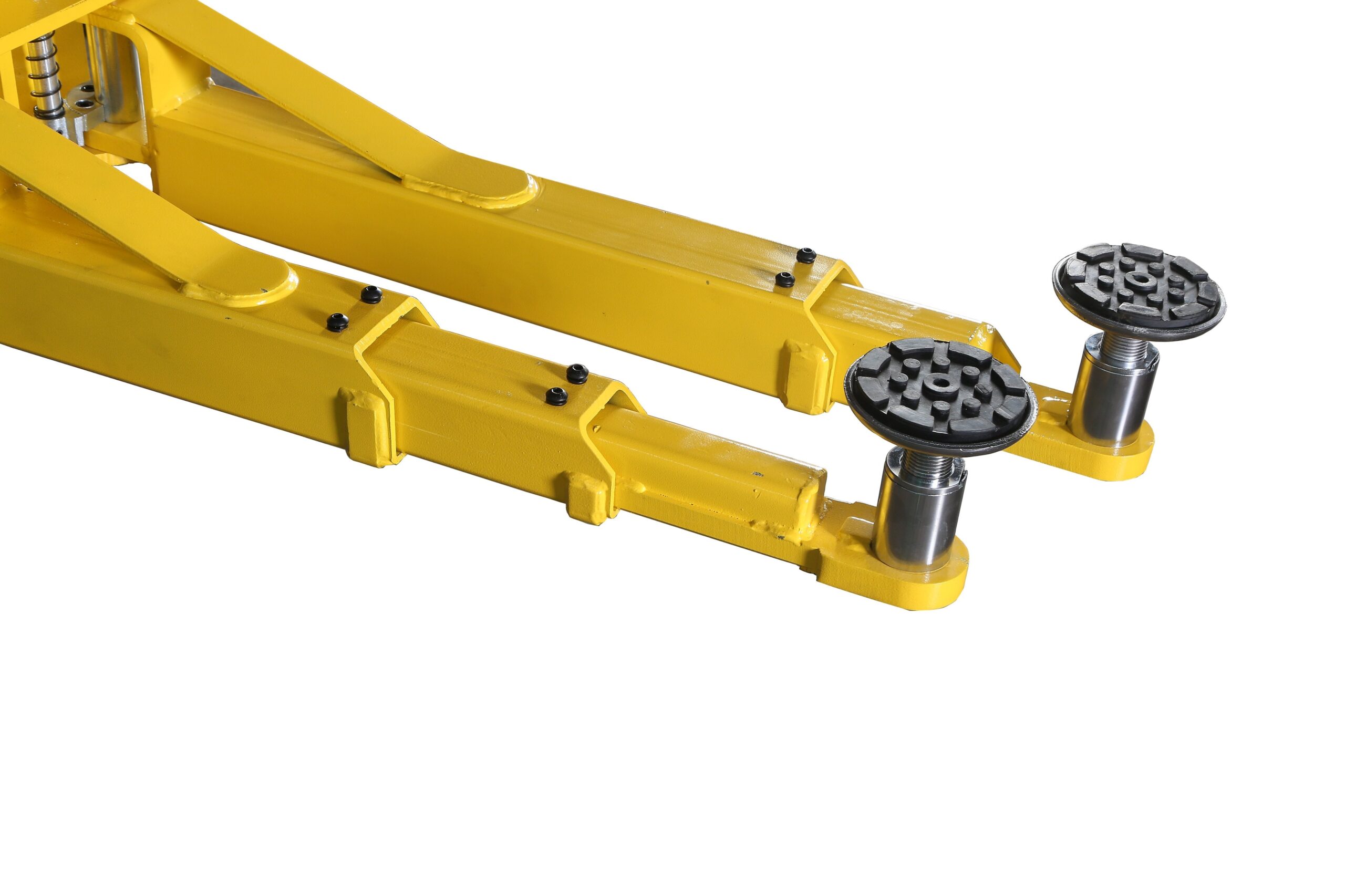

- Combo Arm Assembly: Symmetrical and asymmetrical design with adjustable screw pads.
- CE Certified Structure: Lift and hydraulic system tested for 115% dynamic and 150% static load capacities.
- Enhanced Accessories: Includes one set of 4″ tall truck adapters for a maximum lift height of 6’9″.
- Premium Construction: Robot-welded structure with a durable powder-coated finish.

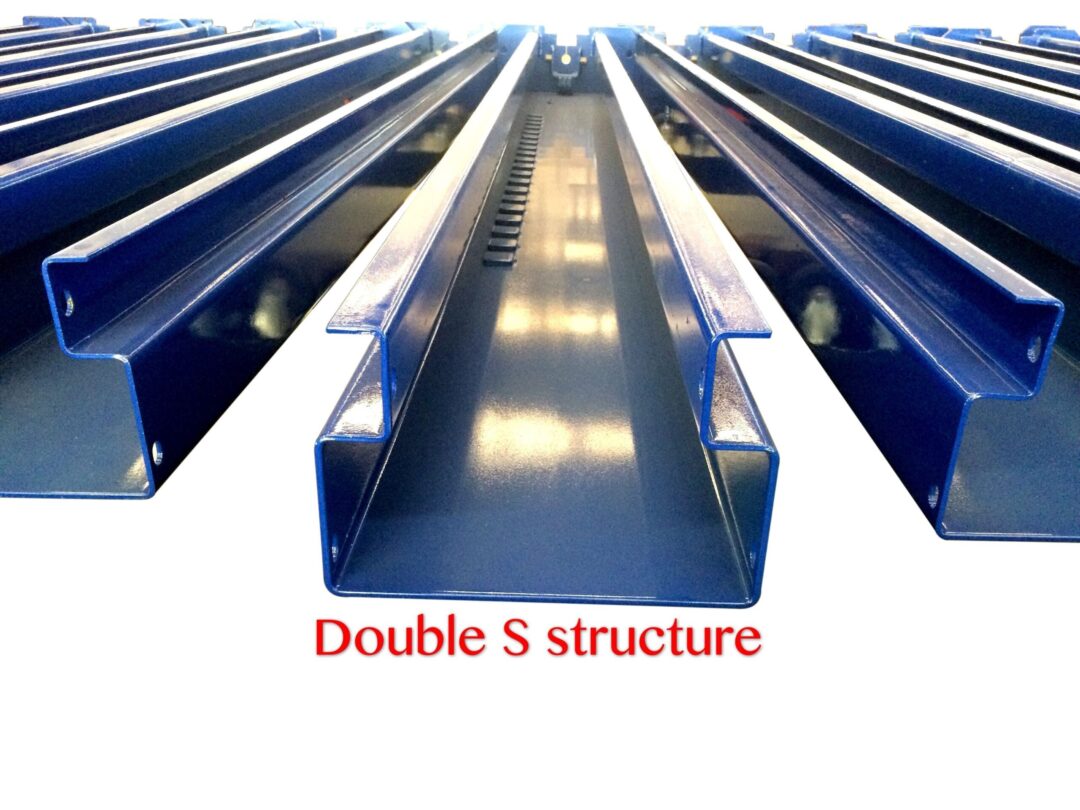

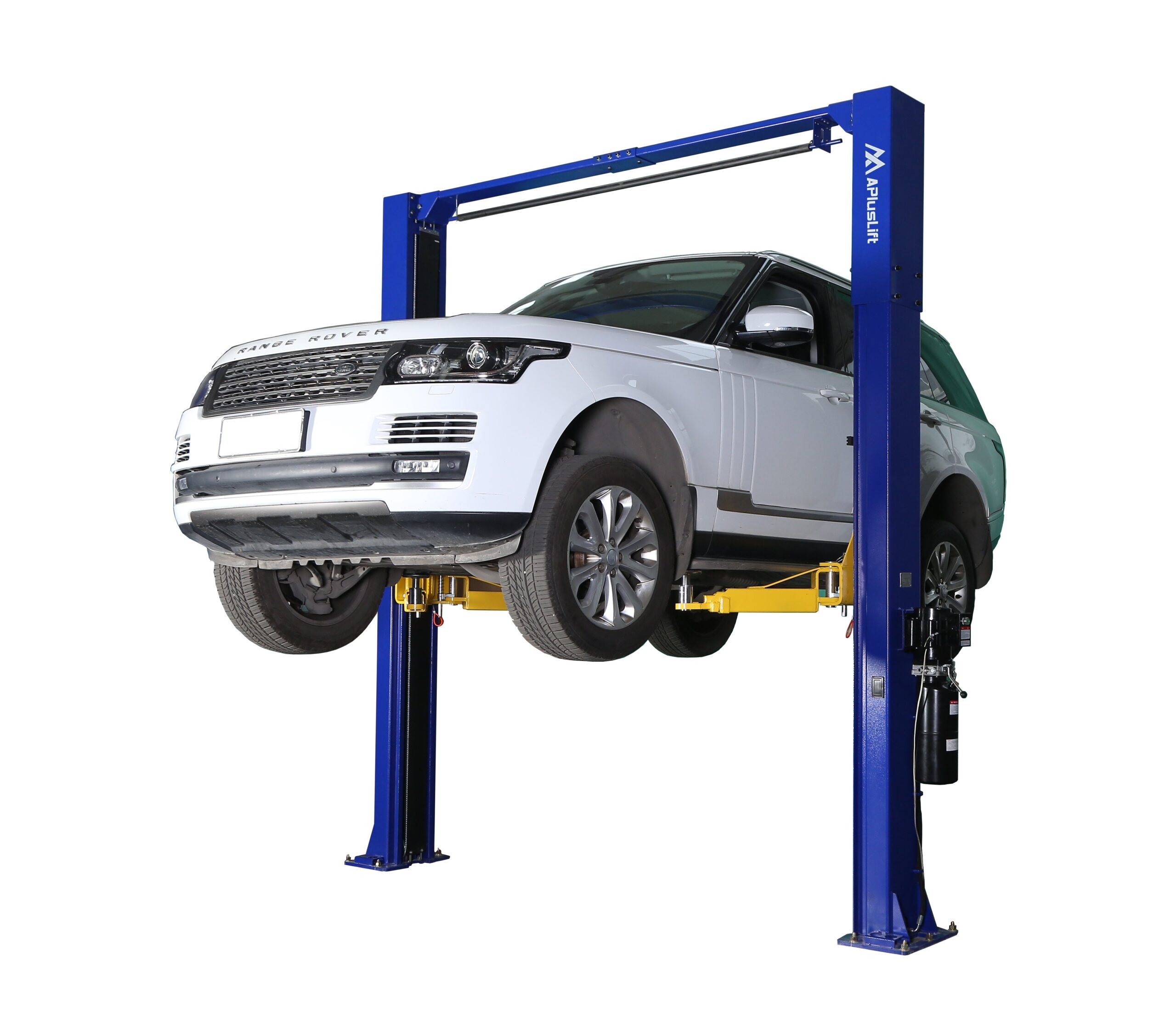

The APlusLift HW-10KOH-A Overhead Car Lift is one of the most affordable yet durable lifts, designed with high-quality materials and exceptional workmanship. Its robust double “S” column structure supports an impressive 10,000 LB capacity. If you’re looking for a single-point release overhead car lift, check out our AP-10SR model.
We take pride in offering an industry-leading 3-year warranty for all parts (a $499 value). Replacement and optional parts are readily available, and we welcome your feedback to continuously improve our products and service.
Key Features
- Free Shipping to the lower 48 states (requires on-site forklift or free pickup at nearby terminals).
- Warehouse Pickup Locations: Save $200 by picking up at locations in Charlotte (NC), Chicago (IL), Dallas (TX), and more.
Specifications
| Model | HW-10KOH-A (This Model) | AP-10SR (For Comparison) |
|---|---|---|
| Style | Overhead | Overhead |
| Lock Release | Double Point Release | Single Point Release |
| Warranty | 3 Years (36 months) | 3 Years (36 months) |
| Lifting Capacity | 10,000 LB | 10,000 LB |
| Maximum Lift Height | 81″ (with truck adapters) | 81″ (with truck adapters) |
| Minimum Pad Height | 4″ | 4″ |
| Motor | 220V Single Phase 3HP | 220V Single Phase 3HP |
| Shipping Weight | 1470 LB | 1400 LB & 120 LB (extension) |
| Concrete Requirement | 6″ thick at 3500 psi reinforced (4″ for <9000 LB vehicles) |
Included Parts

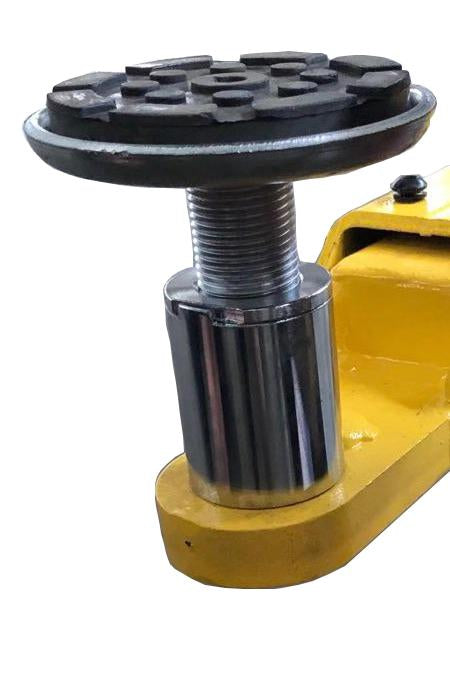

- Adjustable Screw Pads (4)
- 4″ Tall Truck Adapters (4)
- Anchor Bolts, Shims, Tool Trays, and Toe Guards.
Optional Add-Ons: 2 ¾” and 6″ tall truck adapters for extended versatility.
Enhanced Performance Features
- CE Certified lift and hydraulic system with industry-grade safety measures.
- Heavy-Duty Construction: Carriage material Q355 (ASTM A572) for superior strength compared to Q235 steel.

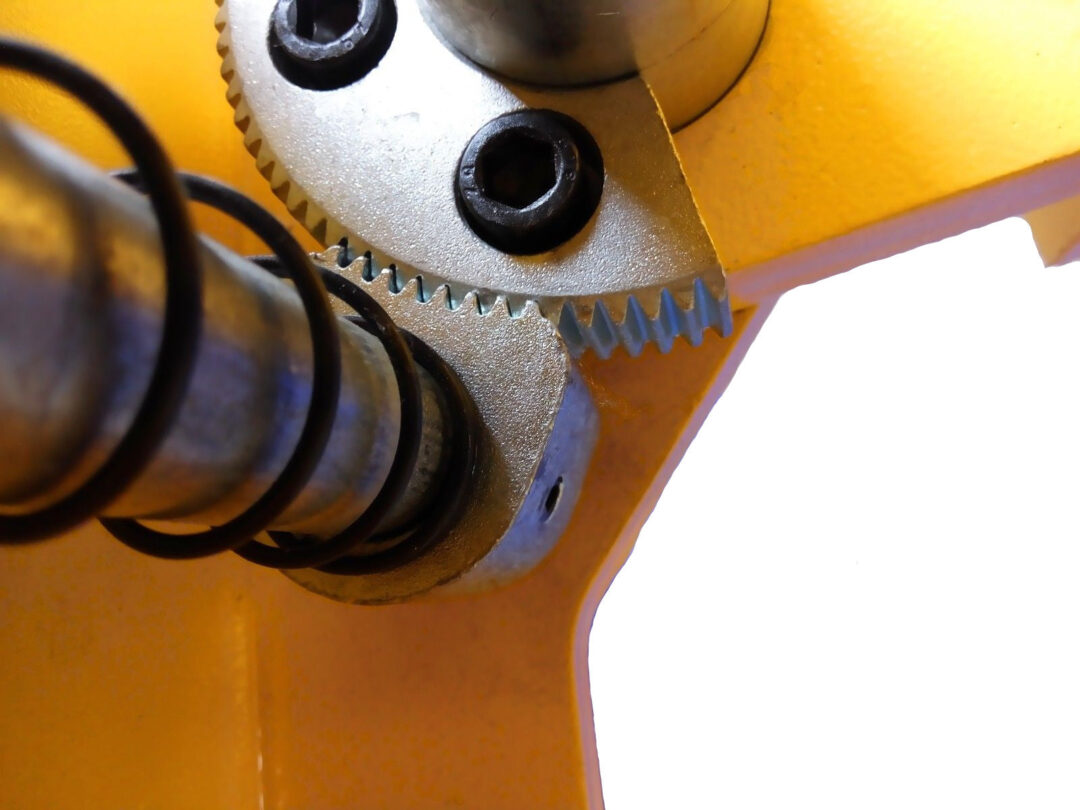

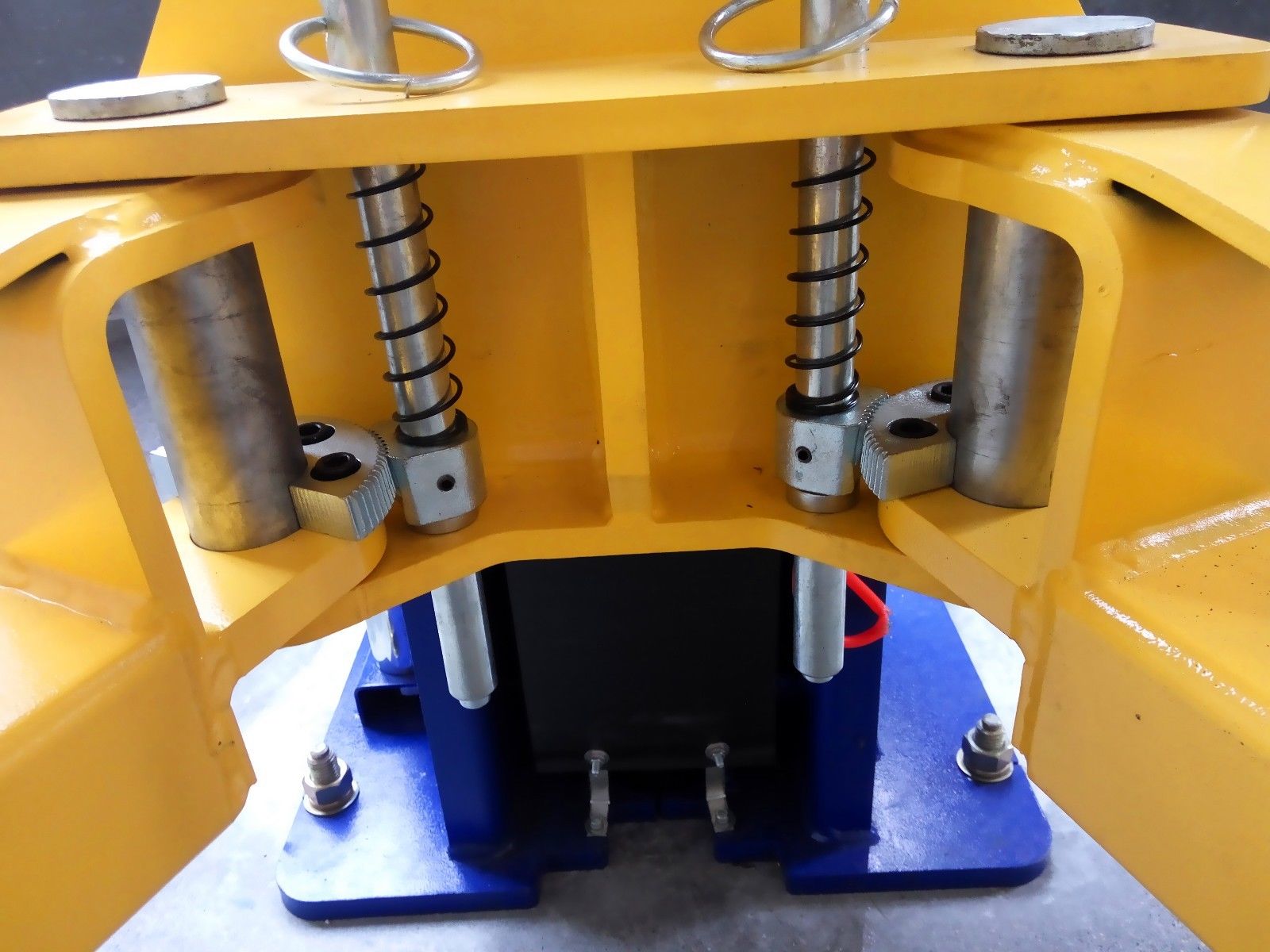

- Advanced Safety: Double-point safety lock release and automatic arm lock restraints.
- Efficient Design: Heavy-duty 3/8″ cables with a 5″ pulley system reduce stress and increase cable lifespan.
- Smooth Operations: Ultra-high molecular nylon sliders ensure seamless carriage movement.
Whether you’re a professional mechanic or a DIY enthusiast, the APlusLift HW-10KOH-A delivers top-tier performance, unmatched reliability, and unbeatable value.
For more details or to place an order, contact us today or visit one of our warehouse pickup locations to save $200!
