Industry-Leading 3-Year Warranty (A $499 Value!)

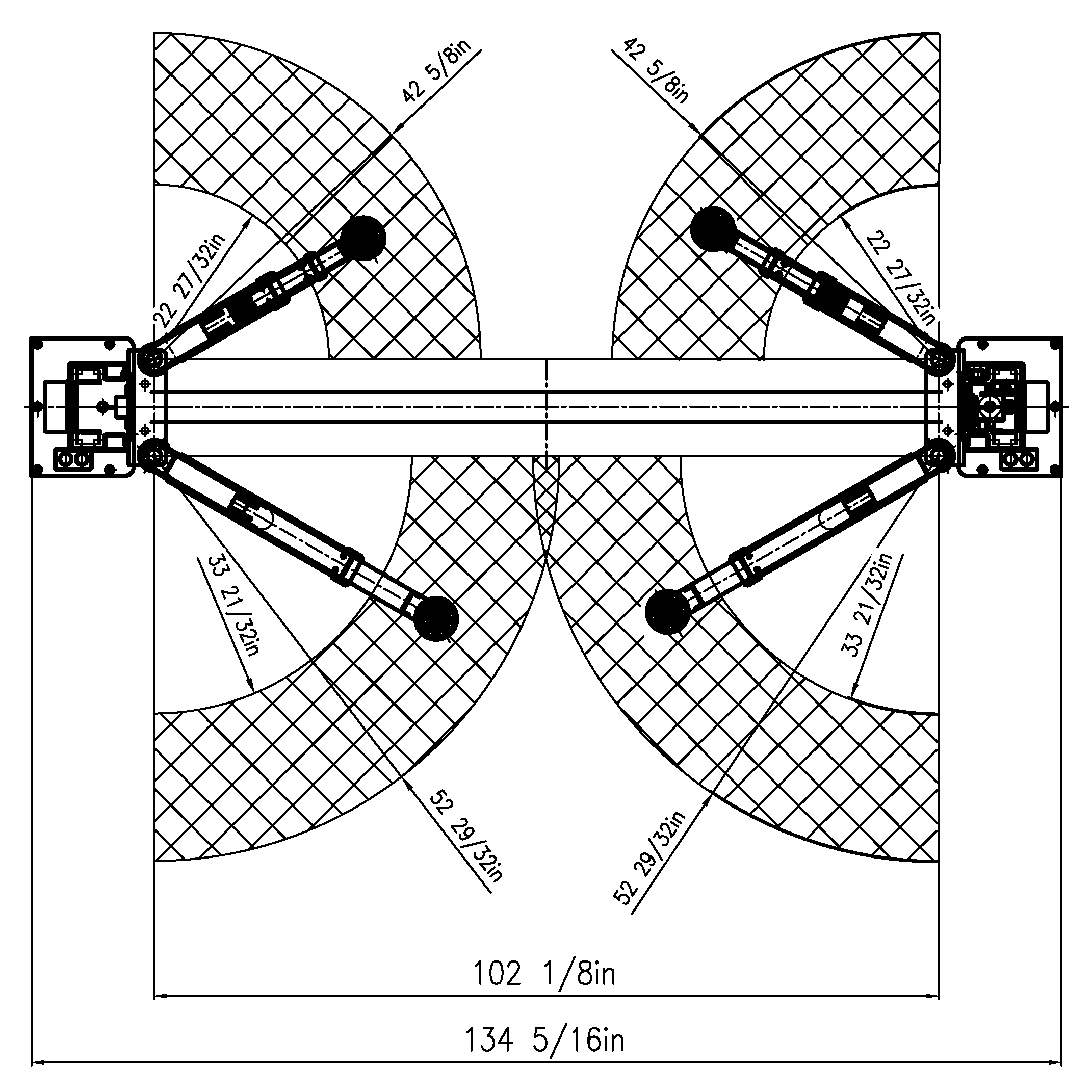

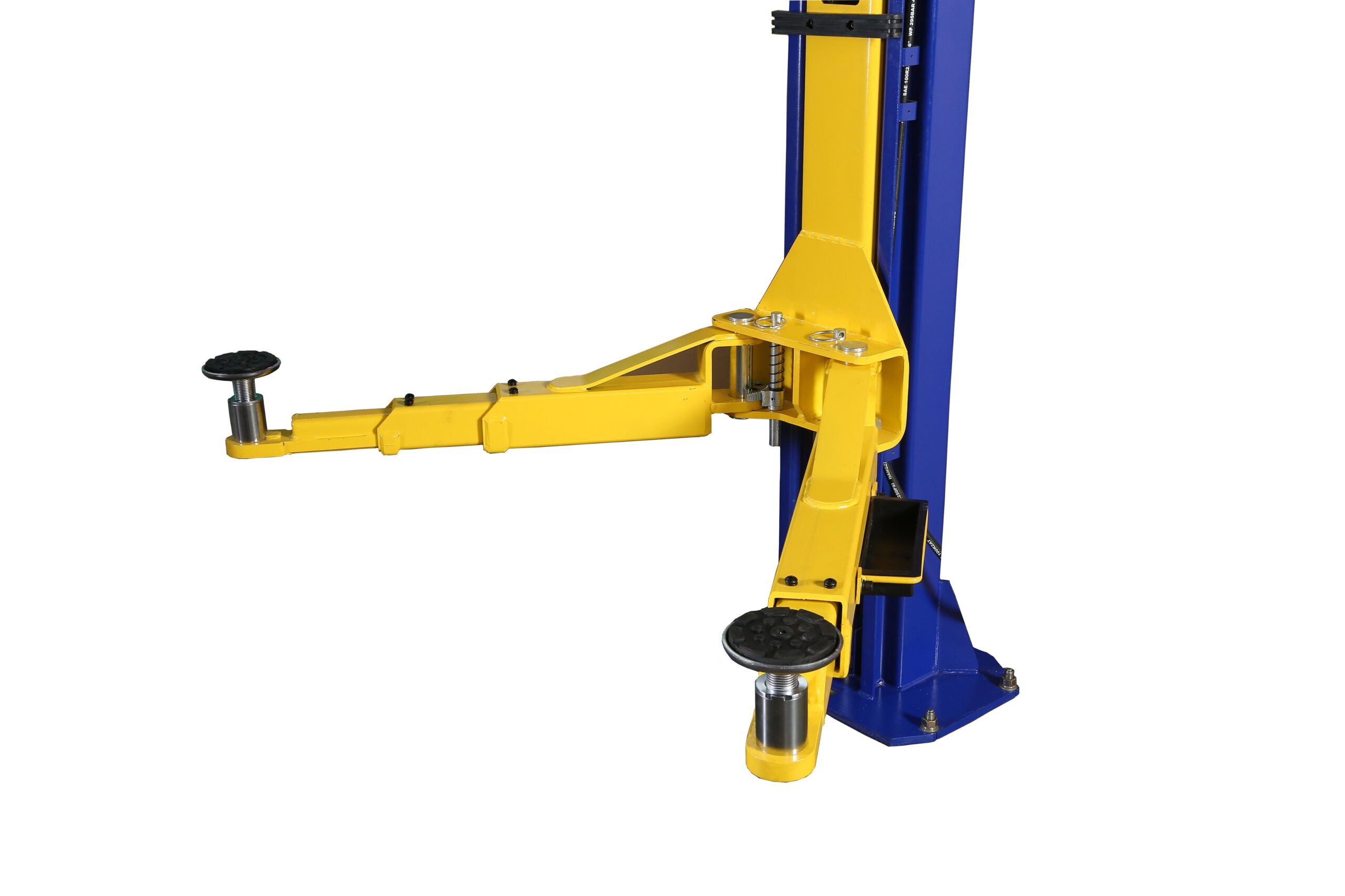

- Combo Arm Assembly: Symmetrical and asymmetrical design with adjustable screw pads.
- Certified Quality: CE-certified lift structure and hydraulic system, tested to handle 115% dynamic load and 150% static load capacities.
- Truck Adapters Included: Comes with one set of 4-inch tall truck adapters. Maximum lift height with adapters is 6’9”.
- Durable Construction: All robot-welded structure with a long-lasting, powder-coated finish.

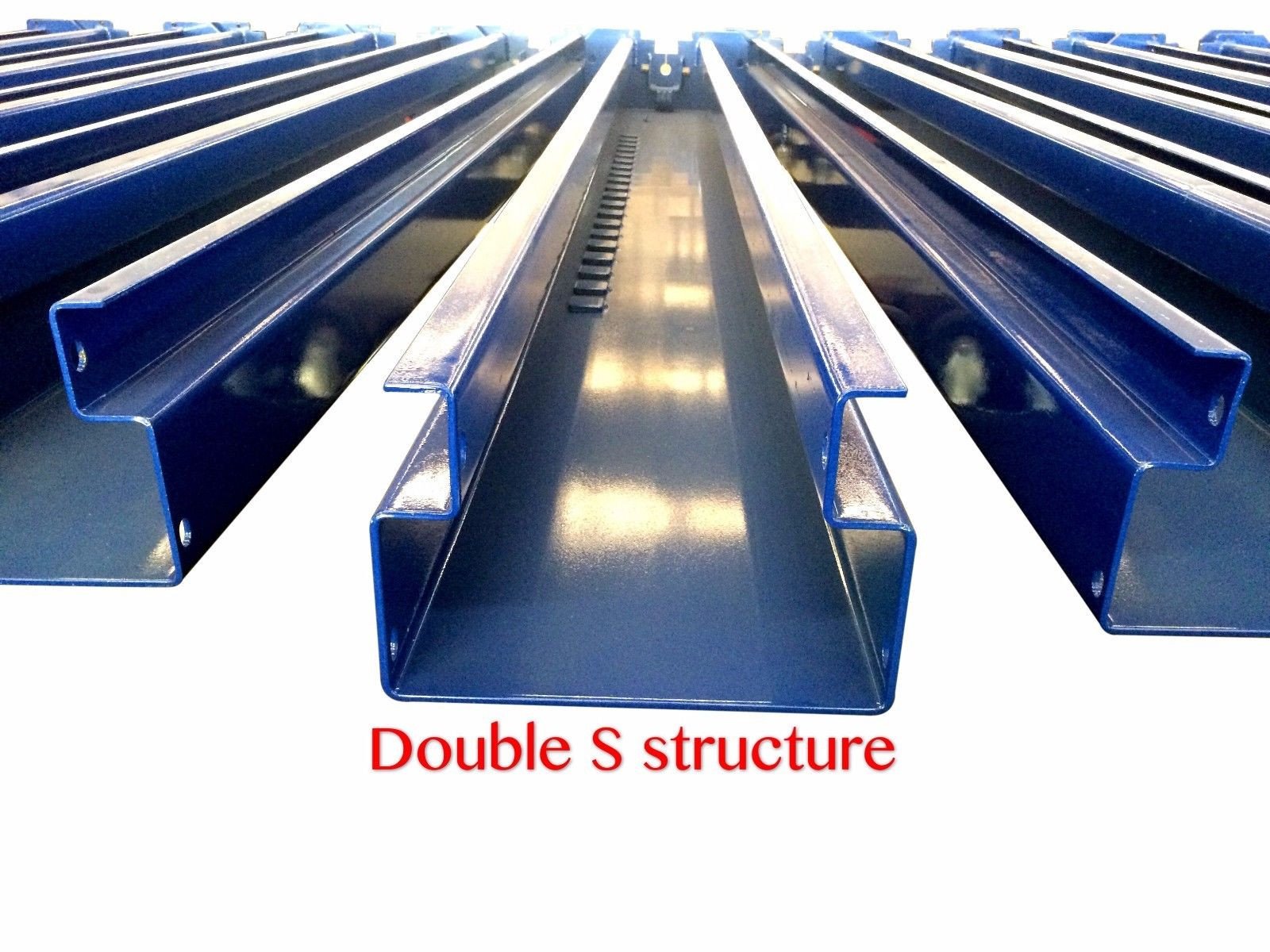

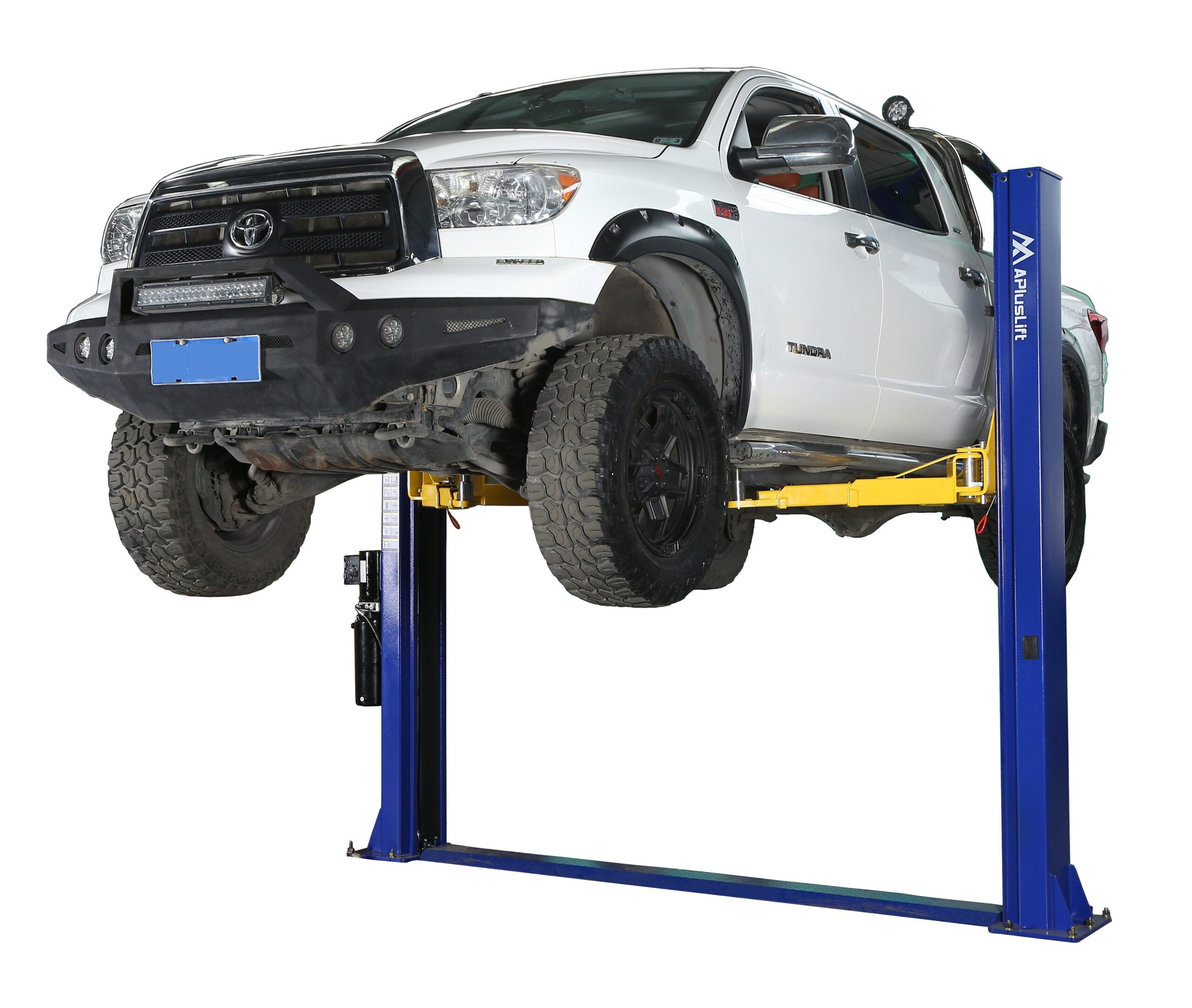

The APlusLift HW-10KBP-A is a high-quality, affordable floor plate car lift designed to handle up to 10,000 lbs. Its robust double “S” column design ensures exceptional durability and stability for various vehicles.
We’re proud to offer an industry-leading 3-year parts warranty (a $499 value), with replacement and optional parts readily available. Your feedback is always welcome as we strive to improve our products and services.
Shipping Information:
- Free shipping to the lower 48 states with a forklift or similar equipment onsite.
- Free pickup available at nearby terminals.
- Forklift required onsite (no liftgate available); renting a forklift is not recommended as expenses are not reimbursed.
- Refer to our shipping policy for remote or high-cost areas.
Warehouse Pickup Locations (Save $200):
Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), Watsontown (PA).
Specifications
| Feature | HW-10KBP-A (This Model) | HW-10KOH-A (Comparison) |
|---|---|---|
| Style | Floor Plate | Overhead |
| Lock Release | Double Point Release | Double Point Release |
| Warranty | 3 Years (36 months) | 3 Years (36 months) |
| Lifting Capacity | 10,000 LB | 10,000 LB |
| Overall Height | 113 5/8″ | 143 3/16″ |
| Drive-Through Width | 100″ | 100″ |
| Column to Column Width | 109″ | 109″ |
| Motor | 220V Single Phase 3HP | 220V Single Phase 3HP |
| Hydraulic Oil | 3-5 gallons (AW32/AW46) | 3-5 gallons (AW32/AW46) |
Parts Included:
- 4 adjustable screw pads
- 4 truck adapters (4-inch height extensions)
- 10 anchor bolts, 10 shims
- 2 tool trays, 2 toe guards
Optional Parts: Additional truck adapters (2.75″ and 6″)
Features
- Certified Durability: CE-certified lift structure and hydraulic system.
- Tested Strength: Handles 115% dynamic load and 150% static load capacities.

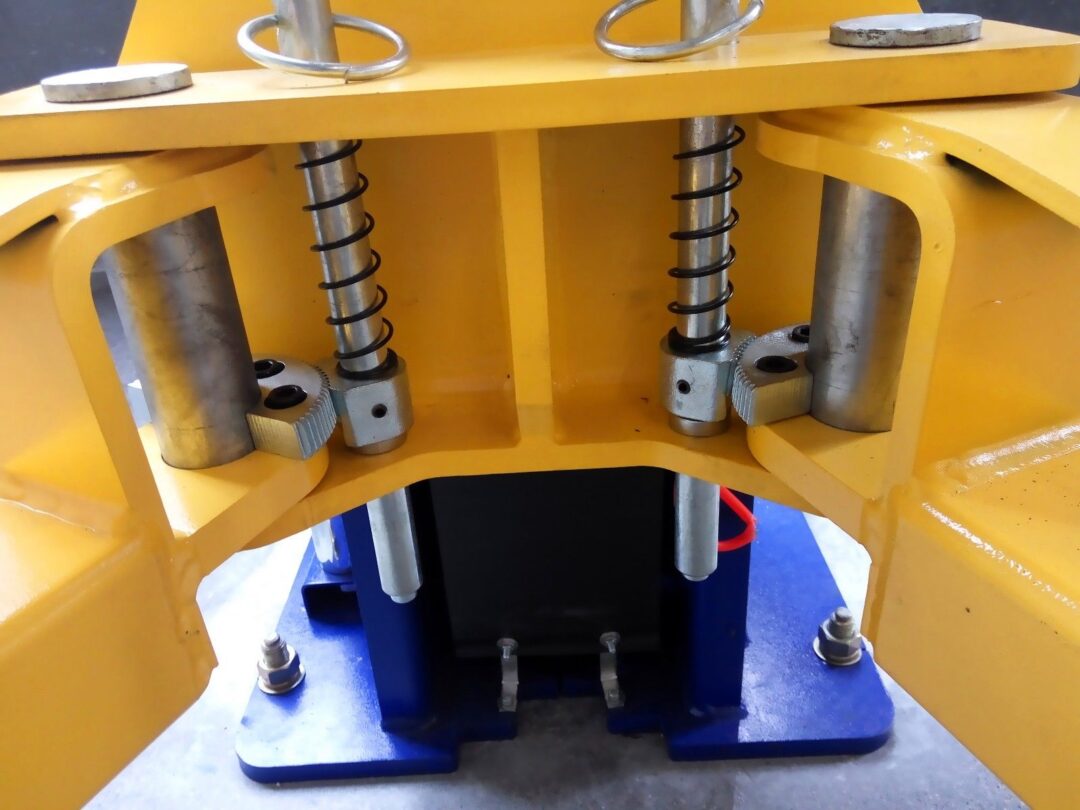

- Enhanced Safety: Double-point safety lock release, automatic arm lock restraints, and door guard protection.
- Reliable Hydraulic System: Relief valve in power pump prevents overloading.
- High-Quality Materials: Q355 (ASTM A572) steel for superior strength and durability.
- Smooth Operation: Self-lubricating nylon sliders ensure smooth lifting and lowering.
- Upgraded Floor Plate: Beveled diamond plate steel with added support for long-term reliability.
For any inquiries or technical support, feel free to contact us!
